Switch Cisco WS-C2960+48TC-S 48 Ports 10/100 + 2 T/SFP LAN Lite

Catalyst 2960-Plus Series Switches

Switch Cisco WS-C2960+48TC-S 48 Ports 10/100 + 2 T/SFP LAN Lite

Giá: Liên hệ

Giới thiệu:

Cisco® Catalyst® 2960-Plus là dòng switch thuộc lớp 2 cho các doanh nghiệp vừa và nhỏ, các chi nhánh văn phòng, không gian làm việc thông thường và các ứng dụng cơ sở hạ tầng. Đảm bảo các hoạt động đáng tin cậy và an toàn với tổng chi phí thấp với các tính năng phần mềm của Cisco IOS® lẫn Cisco Catalyst SmartOperations.

Mua ngay

Switch Cisco WS-C2960+48TC-S được sử dụng cho việc cung cấp kết nối mạng LAN đến các máy tính làm việc và các thiết bị cần kết nối mạng như bộ phát không dây wifi, máy in, máy chủ, IP camera … Dòng Switch WS-C2960+48TC-S tiết kiệm chi phí và rất hiệu quả cho việc cung cấp kết nối mạng, với mức tiêu thụ nguồn điện thấp.

Thông số cơ bản:

Product Code	WS-C2960+48TC-S
Enclosure Type	Rack-mountable 1U
Feature Set	LAN Lite
Uplink Interfaces	2 (SFP or 1000BASE-T)
Ports	48 x 10/100 Ethernet Ports
Forwarding Bandwidth	16 Gbps
Forwarding Performance	6.5 Mpps
RAM	128 MB
Flash Memory	64 MB
Dimensions	4.4cm x 45.0 cm x 24.2 cm
Package Weight	8.0 Kg

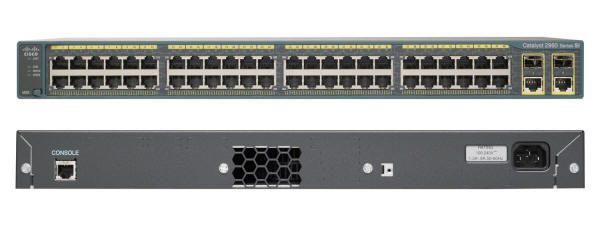

Hình ảnh:

Thông số kỹ thuật Switch Cisco WS-C2960+48TC-S

HardwareSpecifications
Interface	48 ports 10/100
Uplink	2 Ports 1000BaseT/SFP
Maximum Number of PoE (IEEE 802.3af) Ports	-
Flash memory	64 MB
DRAM	128 MB
Performance and Scalability
Forwarding bandwidth	16 Gbps
Maximum active VLANs	64
VLAN IDs available	4K
Maximum transmission unit (MTU) - L3 packet	9000 bytes
Jumbo frame - Ethernet frame	9018 bytes
Forwarding Rate	10.1
Mechanical and Environmental Specifications
Dimensions (H x W x D)	1.73 x 17.70 x 9.52 inch / 4.4 x 45.0 x 24.2 cm
Weight	8 Pounds / 3.6 Kilograms
Environmental Ranges
Operating temperature up to 10,000 ft (3000 m)	-5º to 40ºC / 23º to 104ºF
Operating temperature up to 5000 ft (1500 m)	-5º to 45ºC / 23º to 113ºF
Operating altitude	Up to 10,000Ft / Up to 3,000m
Storage altitude	Up to 13,000Ft / Up to 4,000m
Operating relative humidity	10% to 95% noncondensing
Storage relative humidity	10% to 95% noncondensing
Predicted Reliability	623 MTBF in thousands of hours
Voltage and Power Ratings
Input Voltage and Current	100 to 240 VAC / 0.6 - 0.3 / 50 to 60Hz
Power Rating (kVA)	0.04
DC Input Voltages (RPS Input)	3A at 12V
Available PoE Power	-
Safety and Compliance
Safety	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1
EMC - Emissions	47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A

Các module quang Cisco cho WS-C2960+48TC-S

Part	Depcription
GLC-T	Module quang Cisco GLC-T 1000BASE-T, RJ-45 connector
GLC-TE	Module quang Cisco GLC-TE 1000BASE-T, RJ-45 connector
GLC-SX-MMD	Module quang Cisco GLC-SX-MMD 1000BASE-SX, MMF, DOM, 850 nm, 550m, Dual LC
GLC-LH-SMD	Module quang Cisco GLC-LH-SMD 1000BASE-LX/LH, MMF/SMF DOM, 1310 nm, 10km, Dual LC
GLC-EX-SMD	Module quang Cisco GLC-EX-SMD 1000BASE-EX, SMF, DOM, 1310 nm, 40km, Dual LC
GLC-ZX-SMD	Module quang Cisco GLC-ZX-MMD 1000BASE-ZX, SMF, DOM, 1550 nm, 80km, Dual LC
GLC-SX-MM	Module quang Cisco GLC-SX-MM 1000BASE-SX, MMF, 850 nm, 550m, Dual LC
GLC-LH-SM	Module quang Cisco GLC-LH-SM 1000BASE-LX/LH, MMF/SMF, 1310 nm, 10km, Dual LC
GLC-ZX-SM	Module quang Cisco GLC-ZX-SM 1000BASE-ZX, SMF, 1550 nm, 80km, Dual LC
GLC-BX-D	Module quang Cisco GLC-BX-D 1000BASE-BX, SMF, 1490TX 1310RX, Single LC
GLC-BX-U	Module quang Cisco GLC-BX-D 1000BASE-BX, SMF, 1310TX 1490RX, Single LC
GLC-BX40-D-I	Module quang Cisco 1000BASE-BX40 SFP, 1550NM
GLC-BX40-U-I	Module quang Cisco 1000BASE-BX40 SFP, 1310NM
GLC-BX40-DA-I	Module quang Cisco 1000BASE-BX40 SFP, 1490NM
GLC-BX80-D-I	Module quang Cisco 1000BASE-BX80 SFP, 1570NM
GLC-BX80-U-I	Module quang Cisco 1000BASE-BX80 SFP, 1490NM
GLC-2BX-D	Module quang Cisco GLC-2BX-D 1000BASE-BX10, SMF, 1310TX 1490RX, 2 single LC/PC
SFP-GE-T	Module quang Cisco GLC-T 1000BASE-T, RJ-45 connector
SFP-GE-S	Module quang CiscoSFP-GE-S 1000BASE-SX, MMF, DOM, 850 nm, 550m
SFP-GE-L	Module quang Cisco SFP-GE-L 1000BASE-LX/LH, MMF/SMF DOM, 1300 nm, 10km, Dual LC
SFP-GE-Z	Module quang Cisco SFP-GE-Z 1000BASE-ZX, SMF, 1550 nm, 80km, Dual LC
GLC-SX-MM-RGD	Module quang CiscoGLC-SX-MM-RGD 1000BASE-SX, MMF, 850 nm, 550m, Dual LC, industrial
GLC-LX-SM-RGD	Module quang Cisco GLC-LX-SM-RGD 1000BASE-LX/LH, MMF/SMF, 1300 nm, 10km, Dual LC, industrial
GLC-ZX-SM-RGD	Module quang Cisco GLC-ZX-SM-RGD 1000BASE-ZX, SMF, 1550 nm, 80km, Dual LC, industrial
SFP-GPON-B	Module quang SFP-GPON-B GPON Class B+ SFP OLT, 1490TX 1310RX
SFP-GPON-C	Module quang SFP-GPON-C GPON Class C+ SFP OLT 1490TX 1310RX
SFP-GPON-B-I	Module quang SFP-GPON-B GPON Class B+ SFP OLT, 1490TX 1310RX, industrial
SFP-GPON-C-I	Module quang SFP-GPON-C GPON Class C+ SFP OLT 1490TX 1310RX, industrial

Các module quang OEM cho WS-C2960+48TC-S

Part	Depcription
GLC-LH-SMD-CL	OEM GLC-LH-SMD 1000BASE-LX/LH, MMF/SMF DOM, 1310 nm, 10km, Dual LC
GLC-SX-MMD-CL	OEM GLC-SX-MMD 1000BASE-SX, MMF, DOM, 850 nm, 550m, Dual LC
GLC-EX-SMD-CL	OEM GLC-EX-SMD 1000BASE-EX, SMF, DOM, 1310 nm, 40km, Dual LC
GLC-T-CL	OEM GLC-T 1000BASE-T, RJ-45 connector
GLC-LH-SM-CL	OEM GLC-T 1000BASE-T, RJ-45 connector
GLC-LH-SM-CL	OEM GLC-LH-SMD 1000BASE-LX/LH, MMF/SMF DOM, 1310 nm, 10km, Dual LC
GLC-SX-MM-CL	OEM GLC-SX-MM 1000BASE-SX, MMF, 850 nm, 550m, Dual LC
GLC-ZX-SM-CL	OEM GLC-ZX-SM 1000BASE-ZX, SMF, 1550 nm, 80km, Dual LC
GLC-BX-D-CL	OEM GLC-BX-D 1000BASE-BX, SMF, 1490TX 1310RX, Single LC
GLC-BX-U-CL	OEM GLC-BX-D 1000BASE-BX, SMF, 1310TX 1490RX, Single LC
GLC-LH-SMD-CL	OEM GLC-LH-SMD 1000BASE-LX/LH, MMF/SMF DOM, 1310 nm, 10km, Dual LC
GLC-ZX-SMD	OEM GLC-ZX-MMD 1000BASE-ZX, SMF, DOM, 1550 nm, 80km, Dual LC
