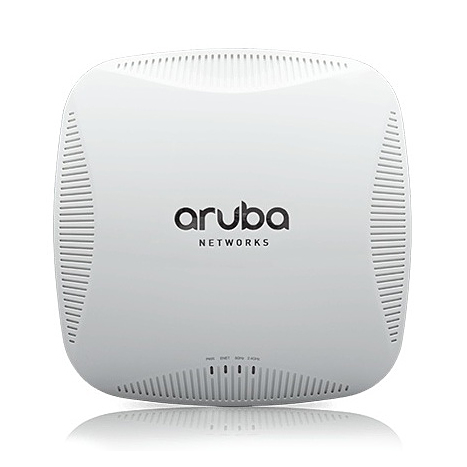

HP Aruba Instant IAP-215 (RW) Access Point JW228A

Giá: Liên hệ
Giới thiệu:
Wireless Access Point hoạt động theo chuẩn A/B/G/N 2.4GHz và 5GHz, cho tốc độ wifi lên đến 450Mbps đối với sóng 2.4GHz và 1300Mbps, cổng kết nối LAN GB hỗ trợ PoE, cổng console RJ45, USB 2.0 host interface.
HP 215 INSTANT ACCESS POINT (ARUBA INSTANT 215)- JW228A

Tính năng kỹ thuật :
Wireless Access Point hoạt động theo chuẩn A/B/G/N 2.4GHz và 5GHz, cho tốc độ wifi lên đến 450Mbps đối với sóng 2.4GHz và 1300Mbps, cổng kết nối LAN GB hỗ trợ PoE, cổng console RJ45, USB 2.0 host interface.
Công nghệ ClientMatch™ hỗ trợ lên đến 255  users cho mỗi băng tần. Hỗ trợ 16 SSID.
Kỹ thuật MIMO 3x3 với 6 Antenna tích hợp dual band (5dBi cho 2.4 GHz và 5dBi cho 5 GHz) gia tăng vùng phủ sóng và loại bỏ điểm chết.
Chế độ vận hành: 802.11a/b/g/n Aruba Instant AP, Air monitor (AM) for wireless IDS, rogue detection and containment, Spectrum analyzer, Secure enterprise mesh.
Tính năng Single Point cho phép 1 AP phân phối cấu hình tới tất cả các AP khác trong mạng giúp đơn giản hóa việc cài đặt và quản lý mạng không dây.

ORDERING INFORMATION
Part Number Description
AP-207 Series Access Points
JW168A Aruba AP-214 802.11n/ac Dual 3x3:3 Radio Antenna Connectors AP
JW222A Aruba Instant IAP-214 (RW) 802.11n/ac Dual 3x3:3 Radio Antenna Connectors AP
JW223A Aruba Instant IAP-214 (US) 802.11n/ac Dual 3x3:3 Radio Antenna Connectors AP
JW221A Aruba Instant IAP-214 (JP) 802.11n/ac Dual 3x3:3 Radio Antenna Connectors AP
JW220A Aruba Instant IAP-214 (IL) 802.11n/ac Dual 3x3:3 Radio Antenna Connectors AP
JW170A Aruba AP-215 802.11n/ac Dual 3x3:3 Radio Integrated Antenna AP
JW228A Aruba Instant IAP-215 (RW) 802.11n/ac Dual 3x3:3 Radio Integrated Antenna AP
JW229A Aruba Instant IAP-215 (US) 802.11n/ac Dual 3x3:3 Radio Integrated Antenna AP
JW227A Aruba Instant IAP-215 (JP) 802.11n/ac Dual 3x3:3 Radio Integrated Antenna AP
JW226A Aruba Instant IAP-215 (IL) 802.11n/ac Dual 3x3:3 Radio Integrated Antenna AP

AP-210 Series Access Points (FIPS/TAA)
JW169A Aruba AP-214 FIPS/TAA-compliant 802.11n/ac Dual 3x3:3 Radio Antenna Connectors AP
JW171A Aruba AP-215 FIPS/TAA-compliant 802.11n/ac Dual 3x3:3 Radio Integrated Antenna AP
JY737A Aruba Instant IAP-214 (JP) FIPS/TAA 802.11n/ac Dual 3x3:3 Radio Antenna Connectors AP
JY738A Aruba Instant IAP-215 (JP) FIPS/TAA 802.11n/ac Dual 3x3:3 Radio Integrated Antenna AP

Mounting Spares
JW044A AP-220-MNT-C1 2x Ceiling Grid Rail Adapter for Basic Flat Rails Mount Kit

Mounting Accessories
JW045A AP-220-MNT-C2 2x Ceiling Grid Rail Adapter for Interlude and Silhouette Mt Kit
JX961A AP-MNT-CM1 Industrial Grade Indoor Access Point Metal Suspended Ceiling Rail Mount Kit
JW046A AP-220-MNT-W1 Flat Surface Wall/Ceiling Black AP Basic Flat Surface Mount Kit
JY706A AP-220-MNT-W3 White Low Profile Box Style Secure Large AP Flat Surface Mount Kit

Generic Indoor AP Accessories
JX989A AP-AC-12V30A 12V/30W AC/DC Desktop Style 1.7/4.0/9.5mm Circular 90 Deg Plug DoE Level VI Adapter
JW627A PD-3501G-AC 15.4W 802.3af PoE 10/100/1000Base-T Ethernet Midspan Injector
JW629A PD-9001GR-AC 30W 802.3at PoE+ 10/100/1000 Ethernet Indoor Rated Midspan Injector

Antennas Please go to the Aruba web site for antenna part numbers.
HP Aruba Instant IAP-215 (RW) Access Point JW228A

- 2.4-GHz (450 Mbps max rate) and 5-GHz (1.3 Gbps max rate) radios, each with 3×3 MIMO and six integrated omni-directional downtilt antennas.

- 1x 10/100/1000BASE-T Ethernet network interface (RJ-45).

- Indoor AP, dual radio, 5 GHz 802.11ac and 2.4 GHz 802.11n 3×3:3.

- Six integrated downtilt omni-directional antennas for 3×3 MIMO with maximum antenna gain of 5.0 dBi in 2.4 GHz and 5.0 dBi in 5 GHz.

- Adaptive Radio Management™ (ARM) technology automatically assigns channel and power settings, provides airtime fairness and ensures that APs stay clear of all sources of RF interference to deliver reliable, high-performance WLANs.

- Maximum (worst-case) power consumption: 14.9 watts (PoE) or 13.6 watts (DC).

- Power Supply: 12VDC.

- Power over Ethernet: 48 VDC 802.3af/802.3at.

- Dimensions: 180 x 180 x 45 mm.

- Weight: 610g.

- Hàng chính hãng HP.
ORDERING INFORMATION
Part Number Description
AP-207 Series Access Points
JW168A Aruba AP-214 802.11n/ac Dual 3x3:3 Radio Antenna Connectors AP
JW222A Aruba Instant IAP-214 (RW) 802.11n/ac Dual 3x3:3 Radio Antenna Connectors AP
JW223A Aruba Instant IAP-214 (US) 802.11n/ac Dual 3x3:3 Radio Antenna Connectors AP
JW221A Aruba Instant IAP-214 (JP) 802.11n/ac Dual 3x3:3 Radio Antenna Connectors AP
JW220A Aruba Instant IAP-214 (IL) 802.11n/ac Dual 3x3:3 Radio Antenna Connectors AP
JW170A Aruba AP-215 802.11n/ac Dual 3x3:3 Radio Integrated Antenna AP
JW228A Aruba Instant IAP-215 (RW) 802.11n/ac Dual 3x3:3 Radio Integrated Antenna AP
JW229A Aruba Instant IAP-215 (US) 802.11n/ac Dual 3x3:3 Radio Integrated Antenna AP
JW227A Aruba Instant IAP-215 (JP) 802.11n/ac Dual 3x3:3 Radio Integrated Antenna AP
JW226A Aruba Instant IAP-215 (IL) 802.11n/ac Dual 3x3:3 Radio Integrated Antenna AP

AP-210 Series Access Points (FIPS/TAA)
JW169A Aruba AP-214 FIPS/TAA-compliant 802.11n/ac Dual 3x3:3 Radio Antenna Connectors AP
JW171A Aruba AP-215 FIPS/TAA-compliant 802.11n/ac Dual 3x3:3 Radio Integrated Antenna AP
JY737A Aruba Instant IAP-214 (JP) FIPS/TAA 802.11n/ac Dual 3x3:3 Radio Antenna Connectors AP
JY738A Aruba Instant IAP-215 (JP) FIPS/TAA 802.11n/ac Dual 3x3:3 Radio Integrated Antenna AP

Mounting Spares
JW044A AP-220-MNT-C1 2x Ceiling Grid Rail Adapter for Basic Flat Rails Mount Kit

Mounting Accessories
JW045A AP-220-MNT-C2 2x Ceiling Grid Rail Adapter for Interlude and Silhouette Mt Kit
JX961A AP-MNT-CM1 Industrial Grade Indoor Access Point Metal Suspended Ceiling Rail Mount Kit
JW046A AP-220-MNT-W1 Flat Surface Wall/Ceiling Black AP Basic Flat Surface Mount Kit
JY706A AP-220-MNT-W3 White Low Profile Box Style Secure Large AP Flat Surface Mount Kit

Generic Indoor AP Accessories
JX989A AP-AC-12V30A 12V/30W AC/DC Desktop Style 1.7/4.0/9.5mm Circular 90 Deg Plug DoE Level VI Adapter
JW627A PD-3501G-AC 15.4W 802.3af PoE 10/100/1000Base-T Ethernet Midspan Injector
JW629A PD-9001GR-AC 30W 802.3at PoE+ 10/100/1000 Ethernet Indoor Rated Midspan Injector

Antennas Please go to the Aruba web site for antenna part numbers.
- Bảo hành: 12 tháng.
Tài liệu liên quan đến sản phẩm JW228A vui lòng tải tại đây.
