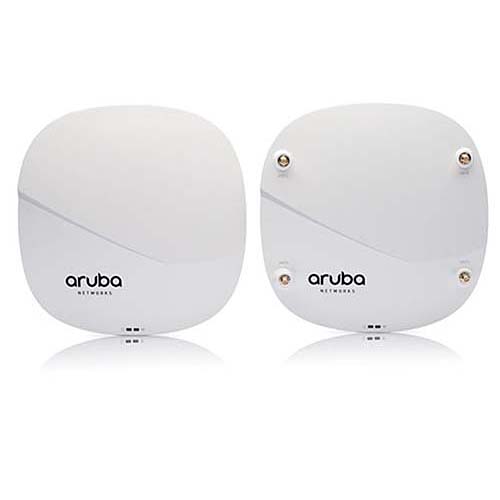

Aruba Instant IAP-207 (RW) Fast 802.11ac that’s affordable for everyone - JX954A
Tính năng kỹ thuật :
Wireless Access Point hoạt động theo chuẩn A/B/G/N/AC 2.4GHz và 5GHz, cho tốc độ wifi lên đến 400Mbps đối với sóng 2.4GHz và 867Mbps đối với sóng 5GHz, cổng kết nối LAN 1GB hỗ trợ PoE, cổng console RJ45.
Công nghệ ClientMatch™ hỗ trợ lên đến 255  users cho mỗi băng tần. Hỗ trợ 16 SSID.
Kỹ thuật MIMO 2x2 với 02 Antenna tích hợp dual band (3.4dBi in 2.4 GHz và 6dBi in 5 GHz) gia tăng vùng phủ sóng và loại bỏ điểm chết.
Chế độ vận hành: Controller-managed mode, Aruba Instant mode, Remote AP (RAP) for branch deployments, Air monitor (AM) for wireless IDS, rogue detection and containment, Secure enterprise mesh.
Tính năng Aruba Instant mode cho phép 1 AP phân phối cấu hình tới tất cả các AP khác trong mạng giúp đơn giản hóa việc cài đặt và quản lý mạng không dây. Tính năng đăng nhập bằng cấu hình Captive Portal cho các user truy cập mạng linh hoạt.

HP Aruba Instant IAP-207 (RW) Access Point JX954A
- Dual Radio 802.11ac Access Point: Supports up to 867 Mbps in the 5GHz band (with 2SS/VHT80 clients) and up to 400 Mbps in the 2.4GHz band.
- One 10/100/1000BASE-T Ethernet network interface (RJ-45).
- Auto-sensing link speed and MDI/MDX.
- 802.3az Energy Efficient Ethernet (EEE).
- Two integrated dual-band downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 3.4dBi in 2.4GHz and 6.6dBi in 5GHz.
- Built-in Bluetooth Low-Energy (BLE) radio.
- Up to 3dBm transmit power (class 2) and -92dBm receive sensitivity.
- Integrated antenna with roughly 30 degrees downtilt and peak gain of 2.2dBi.
- Minimizes interference from 3G/4G cellular networks, distributed antenna systems and commercial small cell/femtocell equipment.
- Quality of service for app visibility and control.
- Visual indicators (multi-color LEDs): for System and Radio status.
- Kensington security slot.

ORDERING INFORMATION
Part Number Description
AP-207 Series Access Points
JX952A Aruba AP-207 802.11n/ac 2x2:2 Dual Radio Integrated Antenna AP
JX953A Aruba AP-207 FIPS/TAA-compliant 802.11n/ac 2x2:2 Dual Radio Integrated Antenna AP
AP-207 Series Instant Access Points
JY860A Aruba Instant IAP-207 (EG) 802.11n/ac 2x2:2 Dual Radio Integrated Antenna AP
JX956A Aruba Instant IAP-207 (IL) 802.11n/ac 2x2:2 Dual Radio Integrated Antenna AP
JX957A Aruba Instant IAP-207 (JP) 802.11n/ac 2x2:2 Dual Radio Integrated Antenna AP
JX954A Aruba Instant IAP-207 (RW) 802.11n/ac 2x2:2 Dual Radio Integrated Antenna AP
JX958A Aruba Instant IAP-207 (RW) FIPS/TAA 802.11n/ac 2x2:2 Dual Radio Integrated Ant AP J
X955A Aruba Instant IAP-207 (US) 802.11n/ac 2x2:2 Dual Radio Integrated Antenna AP
JX959A Aruba Instant IAP-207 (US) FIPS/TAA 802.11n/ac 2x2:2 Dual Radio Integrated Ant AP

Mounting Spares
JW044A AP-220-MNT-C1 2x Ceiling Grid Rail Adapter for Basic Flat Rails Mount Kit

Mounting Accessories
JW045A AP-220-MNT-C2 2x Ceiling Grid Rail Adapter for Interlude and Silhouette Mt Kit
JX961A AP-MNT-CM1 Industrial Grade Indoor Access Point Metal Suspended Ceiling Rail Mount Kit
JW046A AP-220-MNT-W1 Flat Surface Wall/Ceiling Black AP Basic Flat Surface Mount Kit
JW047A AP-220-MNT-W1W Flat Surface Wall/Ceiling White AP Basic Flat Surface Mount Kit
JY705A AP-200-MNT-W3 White Low Profile Box Style Secure Small AP Flat Surface Mount Kit
Q9U25A AP-MNT-W4 White Low Profile Basic AP Flat Surface Mount Kit

Other Accessories
JX960A AP-207-CVR-20 20-pk for AP-207 with Holes for LED Indicators White Non-glossy Snap-on Covers

Generic Indoor AP Accessories
JX990A AP-AC-12V30B 12V/30W AC/DC Desktop Style 2.1/5.5/9.5mm Circular 90 Deg Plug DoE Level VI Adapter
JW627A PD-3501G-AC 15.4W 802.3af PoE 10/100/1000Base-T Ethernet Midspan Injector
JW071A AP-CBL-SER AP Proprietary DB9 Female Serial Adapter Cable
