Cisco RV110W 4-Port Wireless-N VPN Firewall RV110W-E-G5-K9
Giá: Liên hệ
Giới thiệu:
Cisco RV110W Wireles-N Firewall RV110W-E-G5-K9 cung cấp kết nối internet đơn giản, giá phù hợp, bảo mật cao, phù hợp với doanh nghiệp nhỏ và có nhu cầu theo dõi nhân viên từ xa.
Tính năng của Cisco RV110W Wireless-N VPN Firewall RV110W-E-G5-K9:
- Tốc độ cao, chuẩn Wireless 802.11-N gia tăng sóng và độ phủ, hỗ trợ hiệu quả nhân viên khi làm việc ở vị trí xa bàn làm việc.
- Tích hợp bộ chuyển đổi 4 cổng 10/100, kết nối máy tính, máy in, IP Phone, Camera và những thiết bị khác.
- Tường lửa đã được kiểm nghiệm hỗ trợ và bảo vệ an toàn các thông tin kinh doanh
- QoS giúp duy trì chất lượng kết nối, lưu lượng truy cập dữ liệu, thoại, video
- Hỗ trợ mạng ảo riêng biệt, quản lý truy cập các thông tin nhạy cảm và thiết lập chế độ wireless an toàn cao cho người dùng bên ngoài truy cập.
- IP Security (IPsec) Site-to-Site Tunneling và Point-to-Point Tunneling Protocol (PPTP) giúp điều khiển từ xa an toàn các kết nối từ Windows và Mac
- Hỗ trợ IPv6
- Đơn giản hóa cấu hình, quản lý thiết bị trên trình duyệt web
- Hỗ trợ Cisco FindIT Network Discovery Utility
Tính năng của Cisco RV110W Wireless-N VPN Firewall RV110W-E-G5-K9:
- Tốc độ cao, chuẩn Wireless 802.11-N gia tăng sóng và độ phủ, hỗ trợ hiệu quả nhân viên khi làm việc ở vị trí xa bàn làm việc.
- Tích hợp bộ chuyển đổi 4 cổng 10/100, kết nối máy tính, máy in, IP Phone, Camera và những thiết bị khác.
- Tường lửa đã được kiểm nghiệm hỗ trợ và bảo vệ an toàn các thông tin kinh doanh
- QoS giúp duy trì chất lượng kết nối, lưu lượng truy cập dữ liệu, thoại, video
- Hỗ trợ mạng ảo riêng biệt, quản lý truy cập các thông tin nhạy cảm và thiết lập chế độ wireless an toàn cao cho người dùng bên ngoài truy cập.
- IP Security (IPsec) Site-to-Site Tunneling và Point-to-Point Tunneling Protocol (PPTP) giúp điều khiển từ xa an toàn các kết nối từ Windows và Mac
- Hỗ trợ IPv6
- Đơn giản hóa cấu hình, quản lý thiết bị trên trình duyệt web
- Hỗ trợ Cisco FindIT Network Discovery Utility
Figure 1. Cisco RV110W Wireless-N VPN Firewall
Table 1 gives the product specifications for the Cisco RV110W.
Table 1. Product Specifications
Wireless LAN Specifications
Table 2 gives the wireless specifications for the Cisco RV110W.
Table 2. Wireless LAN Specifications
System Specifications
Table 3 gives the system specifications for the Cisco RV110W.
Table 3. System Specifications
Configuration Requirements
Table 4 lists the configuration requirements for the Cisco RV110W.
Table 4. Configuration Requirements
Ordering Information
Table 5 gives ordering information for the Cisco RV110W.
Table 5. Ordering Information
The Cisco® RV110W Wireless-N VPN Firewall provides simple, affordable, highly secure, business-class connectivity to the Internet for small offices/home offices and remote workers.
The Cisco RV110W combines wired and wireless connectivity for small offices and remote workers with a high-speed, 802.11n wireless access point; a 4-port 10/100 Mbps Fast Ethernet switch; an intuitive, browser-based device manager; and support for the Cisco FindIT Network Discovery Utility, all at a very affordable price. Its combination of business-class features, support for virtual networks to enable highly secure guest access, simple installation, and top-quality user experience takes basic connectivity for small businesses with five or fewer employees to a new level. See Figure 1.
Product Overview
The Cisco RV110W Wireless-N VPN Firewall features:
● High-speed, standards-based 802.11n wireless connectivity improves throughput and coverage, allowing employees to stay productive while away from their desks
● Integrated 4-port 10/100 switch, enabling you to connect to computers, printers, IP phones, cameras, and other devices
● Proven firewall with access rules support and advanced wireless security helps keep business assets safe
● Quality of service (QoS) support for enhanced voice, video, and data traffic
● Support for separate “virtual” networks, enabling you to control access to sensitive information and to set up highly secure wireless guest access
● IP Security (IPsec) Site-to-Site Tunneling and Point-to-Point Tunneling Protocol (PPTP) VPN support, providing highly secure remote access connectivity for Windows and Mac OS computers
● Support for IPv6, the latest Internet Protocol technology, to help your network accommodate new technologies
● Simplified configuration through an intuitive, browser-based device manager
● Support for the Cisco FindIT Network Discovery Utility
Figure 2 shows the back panel of the Cisco RV110W. Figure 3 shows a typical configuration using the firewall.
Figure 2. Back Panel of the Cisco RV110W Wireless-N VPN Firewall

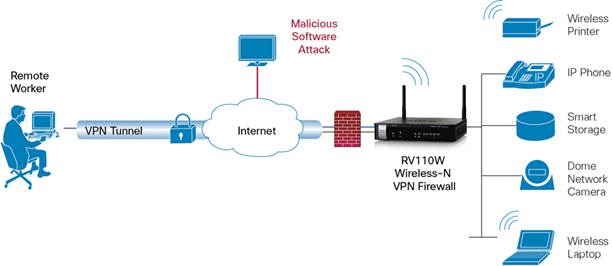

Figure 3. Typical Configuration for Cisco RV110W Wireless-N VPN Firewall
Product SpecificationsThe Cisco RV110W combines wired and wireless connectivity for small offices and remote workers with a high-speed, 802.11n wireless access point; a 4-port 10/100 Mbps Fast Ethernet switch; an intuitive, browser-based device manager; and support for the Cisco FindIT Network Discovery Utility, all at a very affordable price. Its combination of business-class features, support for virtual networks to enable highly secure guest access, simple installation, and top-quality user experience takes basic connectivity for small businesses with five or fewer employees to a new level. See Figure 1.
Product Overview
The Cisco RV110W Wireless-N VPN Firewall features:
● High-speed, standards-based 802.11n wireless connectivity improves throughput and coverage, allowing employees to stay productive while away from their desks
● Integrated 4-port 10/100 switch, enabling you to connect to computers, printers, IP phones, cameras, and other devices
● Proven firewall with access rules support and advanced wireless security helps keep business assets safe
● Quality of service (QoS) support for enhanced voice, video, and data traffic
● Support for separate “virtual” networks, enabling you to control access to sensitive information and to set up highly secure wireless guest access
● IP Security (IPsec) Site-to-Site Tunneling and Point-to-Point Tunneling Protocol (PPTP) VPN support, providing highly secure remote access connectivity for Windows and Mac OS computers
● Support for IPv6, the latest Internet Protocol technology, to help your network accommodate new technologies
● Simplified configuration through an intuitive, browser-based device manager
● Support for the Cisco FindIT Network Discovery Utility
Figure 2 shows the back panel of the Cisco RV110W. Figure 3 shows a typical configuration using the firewall.
Figure 2. Back Panel of the Cisco RV110W Wireless-N VPN Firewall
Figure 3. Typical Configuration for Cisco RV110W Wireless-N VPN Firewall
Table 1 gives the product specifications for the Cisco RV110W.
Table 1. Product Specifications
| Feature | Description |
|---|---|
| Routing |
● Static routing ● Dynamic routing ● Routing Information Protocol (RIP) v1 and v2 ● Inter-VLAN routing |
| Layer 2 |
● 802.1Q-based VLANs ● 4 active VLANs (3 to 4094 range) |
| Network |
● Dynamic Host Configuration Protocol (DHCP) server ● Point-to-Point Protocol over Ethernet (PPPoE) ● Point-to-Point Tunneling Protocol (PPTP) ● Layer 2 Tunneling Protocol (L2TP) ● DNS proxy ● DHCP relay agent ● IGMP Proxy and multicast forwarding ● Internet Group Management Protocol (IGMP) proxy and multicast forwarding ● Rapid Spanning Tree Protocol (RSTP) ● Dynamic DNS (DynDNS), TZO, 3322.org) ● Network Address Translation (NAT), Port Address Translation (PAT) ● Port management ● Port Mirroring ● Software-configurable network edge (DMZ) to any LAN IP address |
| IPv6 |
● Dual-stack IPv4 and IPv6 ● 6to4 tunneling ● Multicast Listener Discovery (MLD) for IPv6 (RFC 2710) ● Stateless address auto-configuration ● DHCP v6 Server for IPv6 Clients on LAN ● DHCP v6 client for WAN connectivity ● Internet Control Message Protocol (ICMP) v6 ● Static IPv6 Routing ● Dynamic IPv6 Routing with RIPng ● IPv6 Rapid Deployment |
| Security |
● Stateful packet inspection (SPI) firewall ● Port forwarding and triggering ● Firewall Access Control Lists and Content Filtering ● Denial-of-service (DoS) prevention ● MAC-based wireless access control ● Static URL blocking or keyword blocking ● Schedule-based Internet access policy ● HTTPS web access to the device manager ● Username/password complexity enforcement ● Self-signed SSL certificate ● Import and export certificate using Privacy-Enhanced Mail (PEM) format |
| VPN |
● 5 IPsec client sessions using Cisco QuickVPN client ● 5 PPTP client sessions for remote client access ● Triple Data Encryption Standard (3DES) VPN pass-through of PPTP, L2TP, and IPsec ● 1 IPSec Site-to-Site tunnel |
|
Quality of service (QoS) |
● 802.1p port-based priority on LAN port, application-based priority on WAN port ● 4 queues ● Differentiated Services Code Pointsupport (DSCP) ● Class of Service (CoS) ● Bandwidth Management for service prioritization |
| Management |
● Simple Network Management Protocol (SNMP) v3 ● Event logging: local, syslog, email alerts ● Firmware upgradable through web browser ● Imported/exported configuration in text format ● Simple browser-based configuration (HTTP/HTTPS) ● Bonjour and Universal Plug and Play (UPnP) ● Network diagnostics: Ping, Traceroute, and DNS Lookup |
| Performance |
● NAT throughput: 90 Mbps ● Concurrent sessions: 5,000 ● VPN throughput: 5Mbps |
Wireless LAN Specifications
Table 2 gives the wireless specifications for the Cisco RV110W.
Table 2. Wireless LAN Specifications
| Feature | Description |
|---|---|
| WLAN hardware |
IEEE 802.11n standard-based access point with 802.11b/g compatibility Radio and modulation type: ● 802.11b: direct sequence spread spectrum (DSSS) ● 802.11g/n: orthogonal frequency division multiplexing (OFDM) ● 2 omnidirectional 1.8 dBi gain fixed external antennas Operating channels: ● 11 in North America ● 13 in most of Europe ● Automatic channel selection Transmit power: ● 802.11b: 17 dBm +/- 1.5 dBm ● 802.11g: 15 dBm +/- 1.5 dBm ● 802.11n: 12.5 dBm +/- 1.5 dBm Receiver sensitivity: ● -87 dBm at 11 Mbps ● -71 dBm at 54 Mbps ● -68 dBm at msc15, HT20 / -66dBm at mcs15, HT40 |
| Wireless Domain Services (WDS) | ● Allows wireless signals to be repeated by up to 3 compatible devices |
| Wi-Fi Multimedia (WMM) | ● WMM with QoS (802.11e), WMM power save (WMM-PS) |
| Active WLAN clients | ● Up to 32 clients |
| Service Set Identifiers (SSIDs) | ● Up to 4 separate wireless networks |
| Wireless isolation | ● Wireless isolation between clients |
| WLAN security | ● WPS ( Wi-Fi Protected Setup), Wired Equivalent Privacy (WEP), Wi-Fi Protected Access (WPA) personal and enterprise, WPA2 personal and enterprise |
System Specifications
Table 3 gives the system specifications for the Cisco RV110W.
Table 3. System Specifications
| Feature | Description |
|---|---|
| WAN | One 10/100 Mbps Fast Ethernet WAN port |
| LAN | Four 10/100 Mbps Fast Ethernet LAN ports |
| WLAN | Built-in 802.11n wireless access point |
| LEDs | Power, WPS, WAN, Wireless, LAN (ports 1-4) |
| Switch | Power button (on/off) |
| Physical dimensions and weight |
● W x D x H = 5.91 in. x 5.91 in. x 1.18 in. (150 mm x 150 mm x 30 mm) ● Weight: 0.61 lb (0.3 kg) |
| Power | 12V 1A |
| Certifications |
● FCC Class B ● CE ● IC ● cUL ● Wi-Fi |
| Environmental operating range |
● Operating temperature: 0° to 40°C (32° to 104°F) ● Storage temperature: –20° to 70°C (–4° to 158°F) ● Operating humidity: 10% to 85% noncondensing ● Storage humidity: 5% to 90% noncondensing |
Configuration Requirements
Table 4 lists the configuration requirements for the Cisco RV110W.
Table 4. Configuration Requirements
| Feature | Description |
|---|---|
| Network adapter | PC with network adapter and Ethernet cable |
| Web-based configuration | Web browser |
Ordering Information
Table 5 gives ordering information for the Cisco RV110W.
Table 5. Ordering Information
| Part Number | Product Name |
|---|---|
| RV110W-A-NA-K9 | Cisco RV110W Wireless-N VPN Firewall (USA) |
| RV110W-E-G5-K9 | Cisco RV110W Wireless-N VPN Firewall (Europe) |
| RV110W-A-CA-K9 | Cisco RV110W Wireless-N VPN Firewall (Canada) |
| RV110W-A-AU-K9 | Cisco RV110W Wireless-N VPN Firewall (Australia) |
| RV110W-E-CN-K9 | Cisco RV110W Wireless-N VPN Firewall (China) |
| RV110W-A-AR-K9 | Cisco RV110W Wireless-N VPN Firewall (Argentina) |
