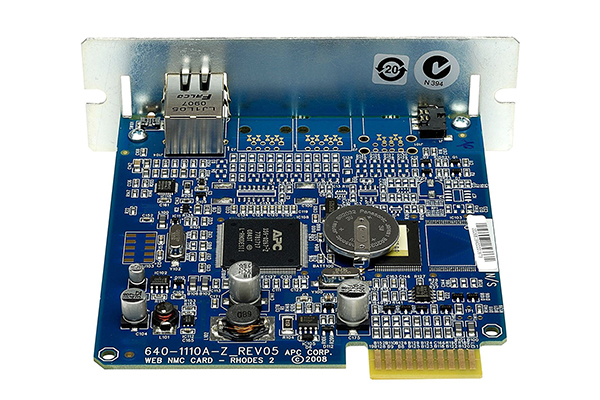

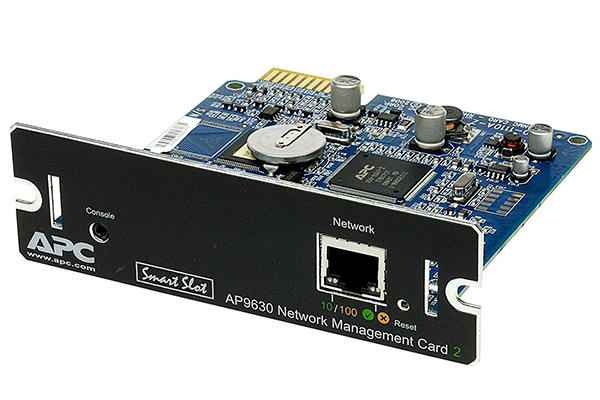

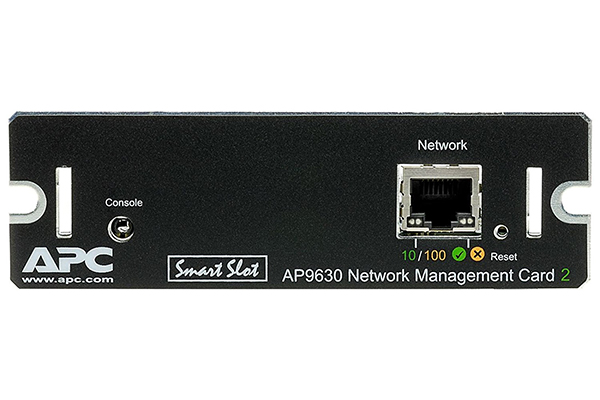

Card quản lý mạng UPS Network Management Card 2 AP9630
Giá: Liên hệ
Giới thiệu:
The APC AP9630 UPS Network Management Card 2 allows users to monitor and control their APC UPS systems via secure network browsers or external command line interfaces. The card provides multiple-user access and multiple-language support, notifies users when problems occur, and includes individual password protection. The card is capable of operating on a network using IPv6 protocol, and features device encryption to securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), and SNMPv3. Through data and event logging, the card helps users identify and pinpoint problematic issues and trends. With the included PowerChute Network Shutdown software, information is kept safe during power outages.
UPS Network Management Card 2
-
BACnet/IP SupportSupports reporting UPS information to Building Management Systems or other third party management systems via BACnet/IP (pending BTL certification) (Single Phase Smart-UPS and Symmetra only).
-
Command line interfaceOffers simultaneous remote management access through Telnet and SSH
-
Compatible with SmartSlot enabled UPSsCompatible with all SmartSlot UPSs
-
Device EncryptionSecurely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3
-
IPv6 SupportCapable of operating on a network using IPv6 protocol
-
Modbus TCP SupportSupports reporting UPS information to Building Management Systems or other third party management systems via Modbus TCP.
-
Multiple language supportWeb browser interface available in English, French, Russian, Chinese, Japanese, Korean, German, Italian, Spanish, Portuguese
-
Multiple user accessSupports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users
-
Smart Battery Management SupportDetailed battery information including battery cartridge parameters provides early-warning fault analysis to simplify management of the entire battery system (SRT Smart-UPS only).
-
Standard UPS RFC 1628 MIB CompatibleMake UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps (events) using RFC 1628 MIB.
-
UPS Firmware UpdateUser friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only).
| UPS Network Management Card 2 | |
| MODEL | AP9630 |
| KÍCH THƯỚC | |
| Chiều dài | 38mm |
| Chiều rộng | 121mm |
| Chiều sâu | 114mm |
| Trọng lượng | 0.08 kg |
| Trọng lượng vận chuyển | 0.34 kg |
| Chiều dài vận chuyển | 51mm |
| Chiều rộng vận chuyển | 235mm |
| Chiều dày vận chuyển | 159mm |
| Màu sắc | Đen |
| MÔI TRƯỜNG HOẠT ĐỘNG | |
| Nhiệt độ hoạt động | 0 – 45 °C |
| Độ ẩm hoạt động | 0 – 95 % |
| Độ cao hoạt động | 0 – 3000m |
| Nhiệt độ bảo quản | -5 – 45 °C |
| Độ ẩm bảo quản | 0 – 95 % |
| Độ cao bảo quản | 0 – 15000m |
| TIÊU CHUẨN & CHÍNH SÁCH | |
| Tiêu chuẩn |
AS/NZS 3548 (C-Tick) Class A, EN 55022 Class A, EN 55024, FCC Part 15 Class A, GOST, ICES-003, VCCI Class A |
| Tiêu chuẩn bảo hành | 2 năm sửa chữa hoặc thay thế |
| QUY CHUẨN AN TOÀN | |
| RoHS | Đạt tiêu chuẩn |
| REACH | REACH: Bao gồm không chất độc hại |
| PEP | |
| EOLI | |
| Chỉ số pin | Có |
| Ghi chú pin | Có |
